4 Storey Apartment Block Floor Cassettes
Floor cassette design with open web joists
Floor cassettes sure do speed up on site construction, it also reduces the loose material on site. When you have a small site with no storage this is definitely the way to go.
It takes quite some time to design but what you loose in the office you gain on site. All these floors were laid in less than a day. With over 55 cassettes average per floor, ranging from 5m to 9m. All joists are Open web 254mm.
It is important to load and deliver in a sequence that they are going to be erected. Also remember to start the layout with a shy detail been laid first.
When the panels are with a similar edge detail make sure that the cassettes are marked so that they do not be laid back to front.
Steel Ga with shelf plates to receive cassettes
example of manufacturing cassette

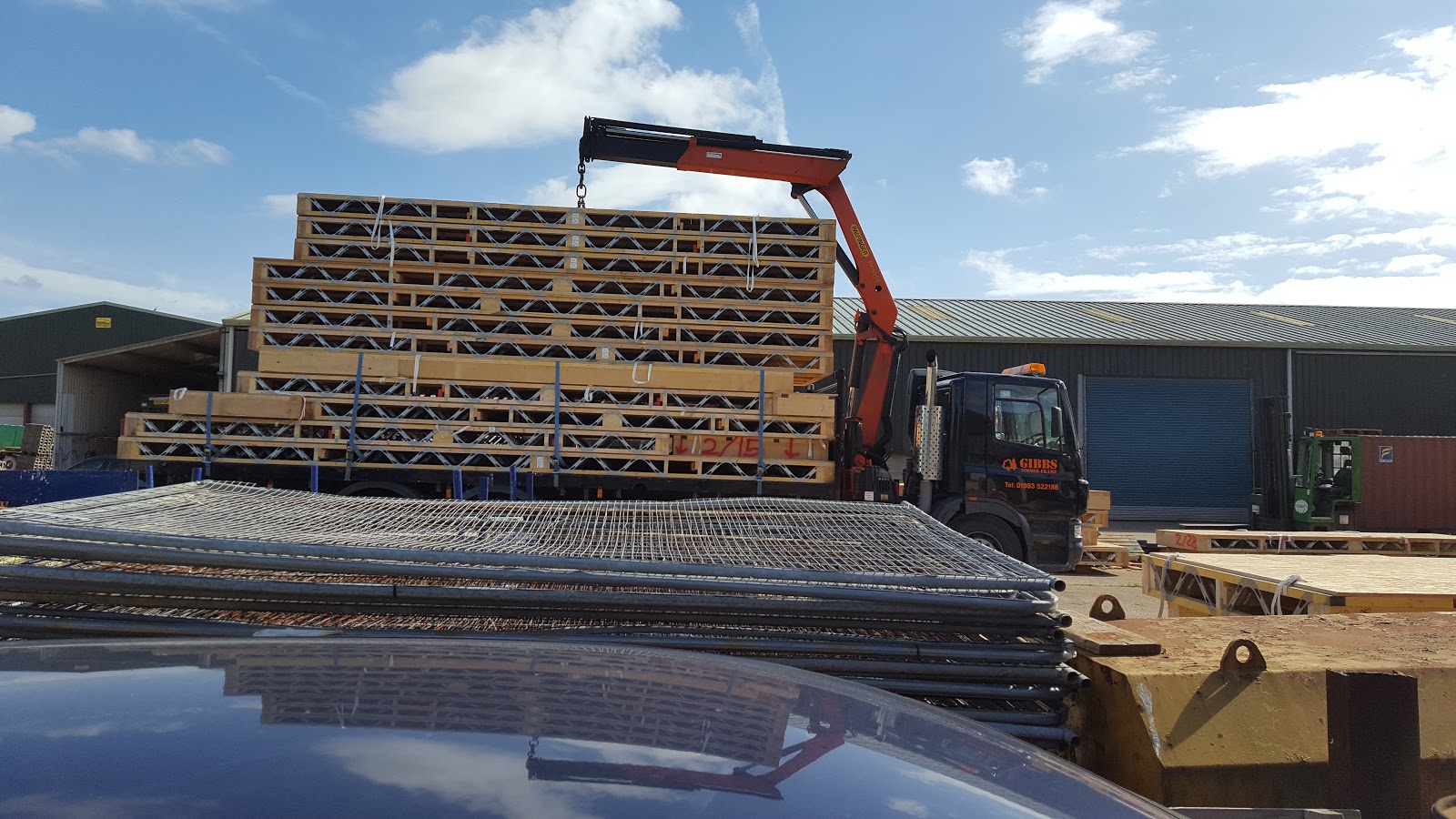

Carefully loaded in a sequence so that the last first panel on the top gets fitted first.
Fitting beautifully.

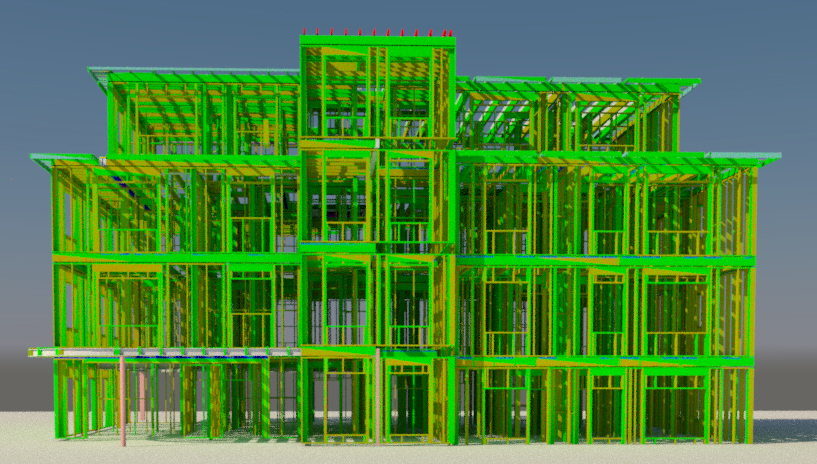

Overall Timber frame 3d. Note cassettes have overhangs and firrings.
A playful 3D generated from our software.

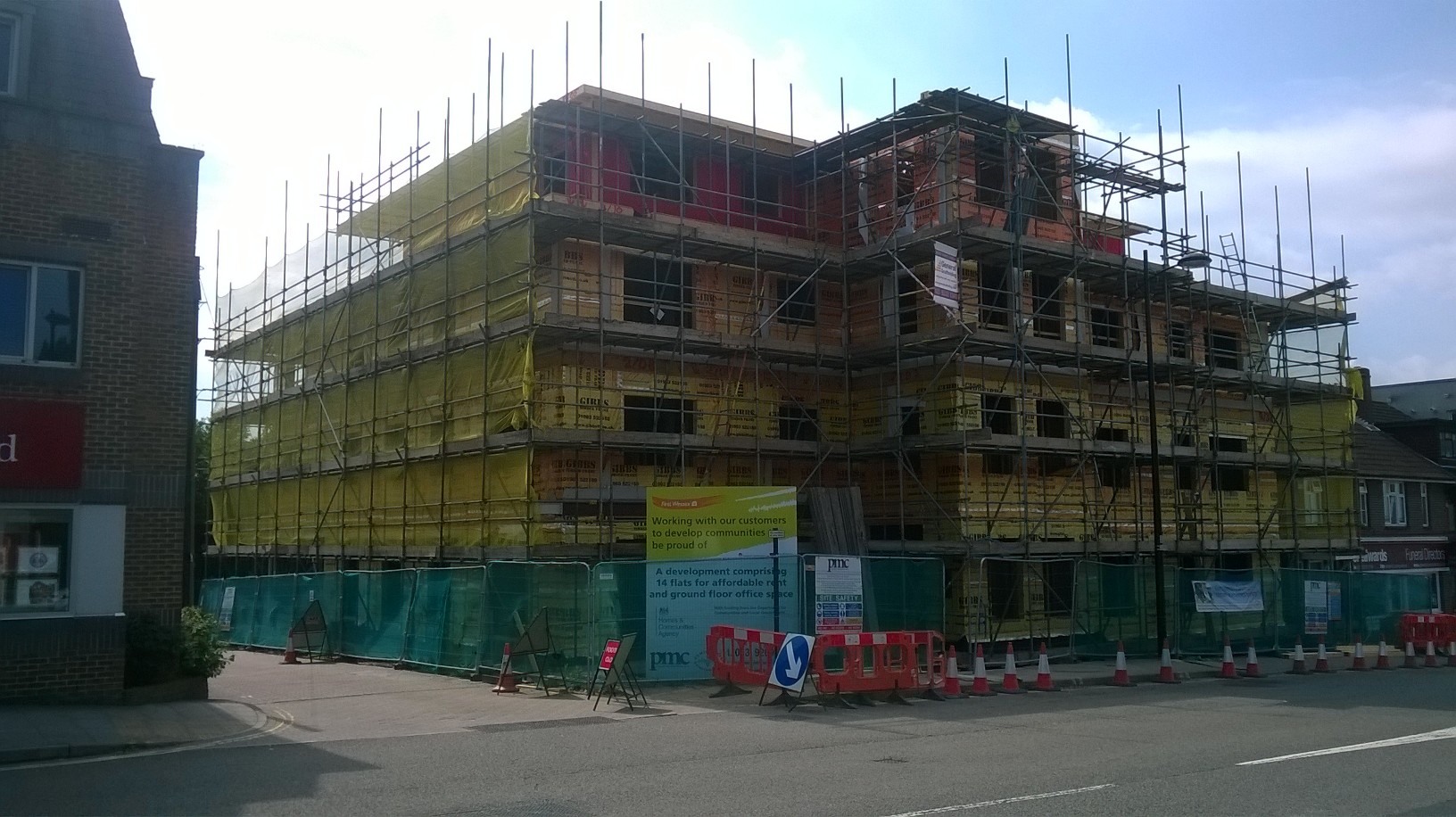

Final cassette fitted
Also good to show 3ds with a sequence of elements to be installed first.
